Sketching with Hardware
Day 1
GIF by Robin Davey, http://robindavey.co.uk/
Course Overview
| 1 | Monday | Fundamentals, Keyboard Hacking, Experiments |
|---|---|---|
| 2 | Tuesday | Arduino, Project Topic |
| 3 | Wednesday | Brainstorming Day |
| 4 | Thursday | Concept Presentation, Own Project |
| 5 | Friday | Own Project |
| Saturday | — | |
| Sunday | — | |
| 6 | Monday | Own Project |
| 7 | Tuesday | Own Project |
| 8 | Wednesday | Final Presentation, Wrap Up |
Day 1
| 09:00 | Introduction, Fundamentals |
|---|---|
| 10:00 | Practical Exercise |
| 12:00 | Break |
| 14:00 | Keyboard Hacks |
| 16:30 | Mini Presentation |
Organization…
»You Shall…«
- use the lab upstairs. Keep it tidy!
- use the materials provided and/or bring your own. You might even get your money back
- might use the laser cutter / 3D printer. Ask!
- ask if you need anything!

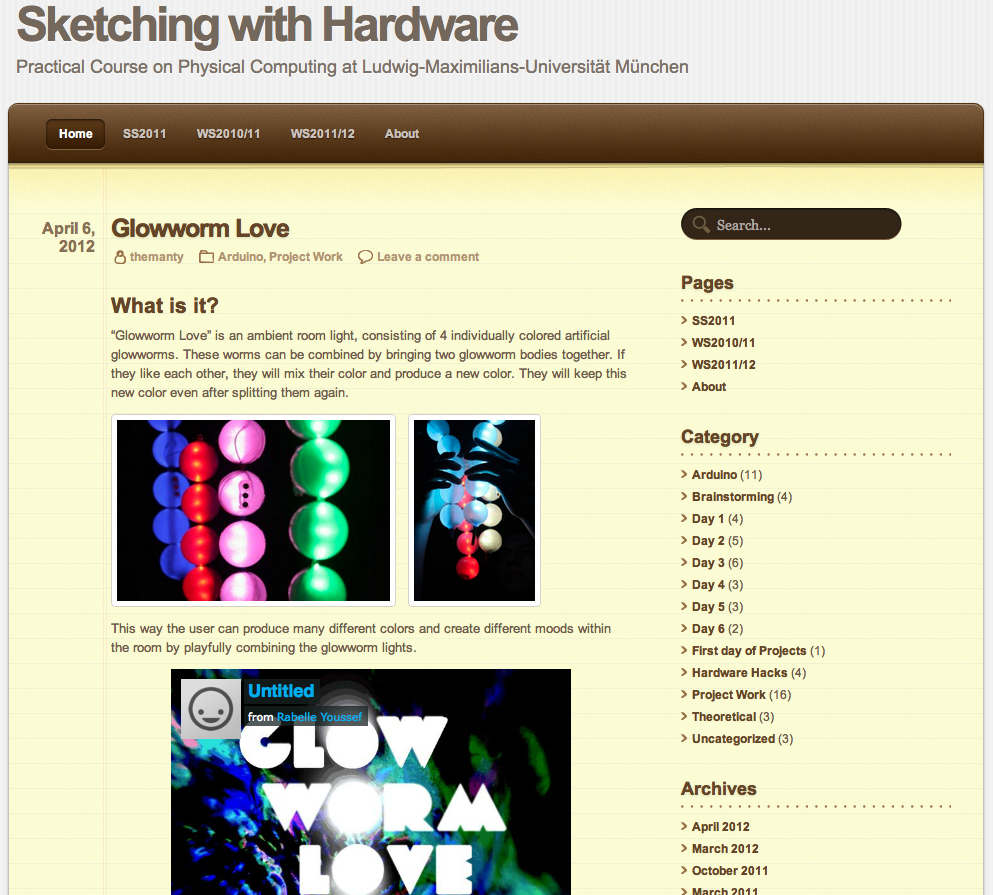

Blog
- URL: http://blog.medien.ifi.lmu.de/swh/
- Old: http://sketchingwithhardware.wordpress.com/
- Each team documents its own progress (photos, videos, text)
- MA students also document 1 full day ("deliverable", needed for grades)
- Due: 1 week after final presentation
- → Take photos, videos all the time!
Blog-Admin
- Login = Windows-Account
- Need an account? Forgot password?
→ Rainer Fink (ät ifi)
What are We Doing Here?

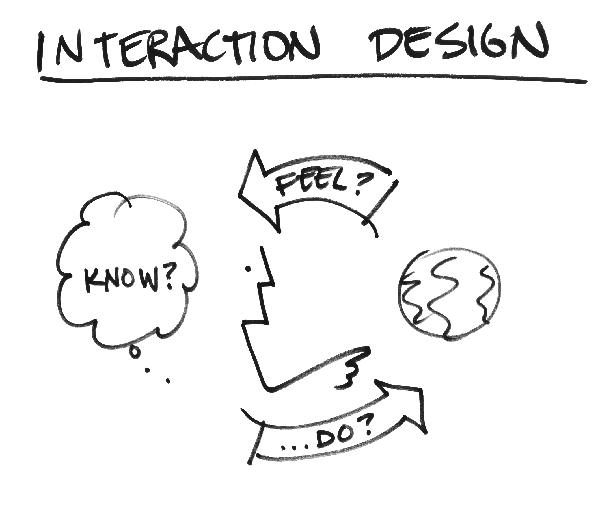

Interaction Design
Mental Model
Transducers (Output)
Computer
Transducers (Input)

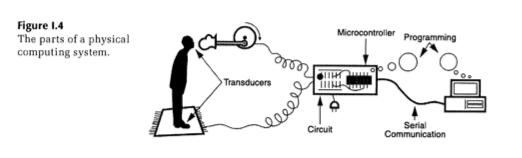

Physical Computing
Physical Computing
Is an approach to learning how humans communicate through computers
that starts by considering how humans express themselves physically.
Tom Igoe

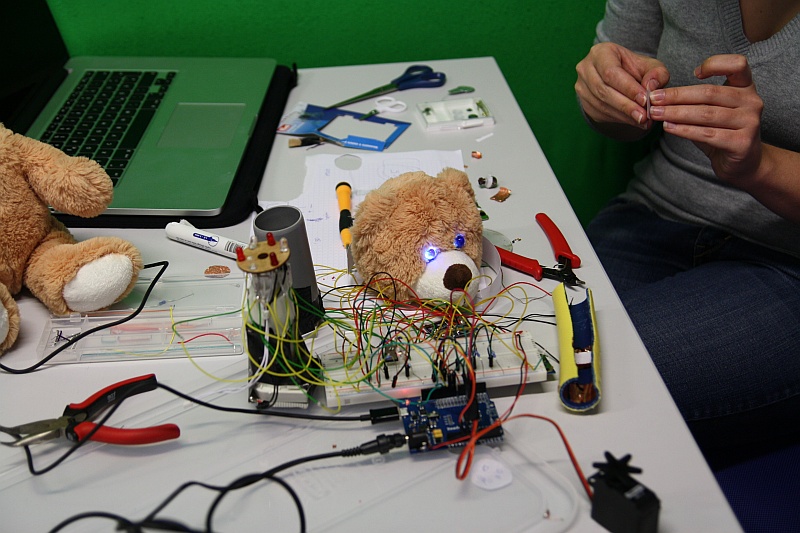

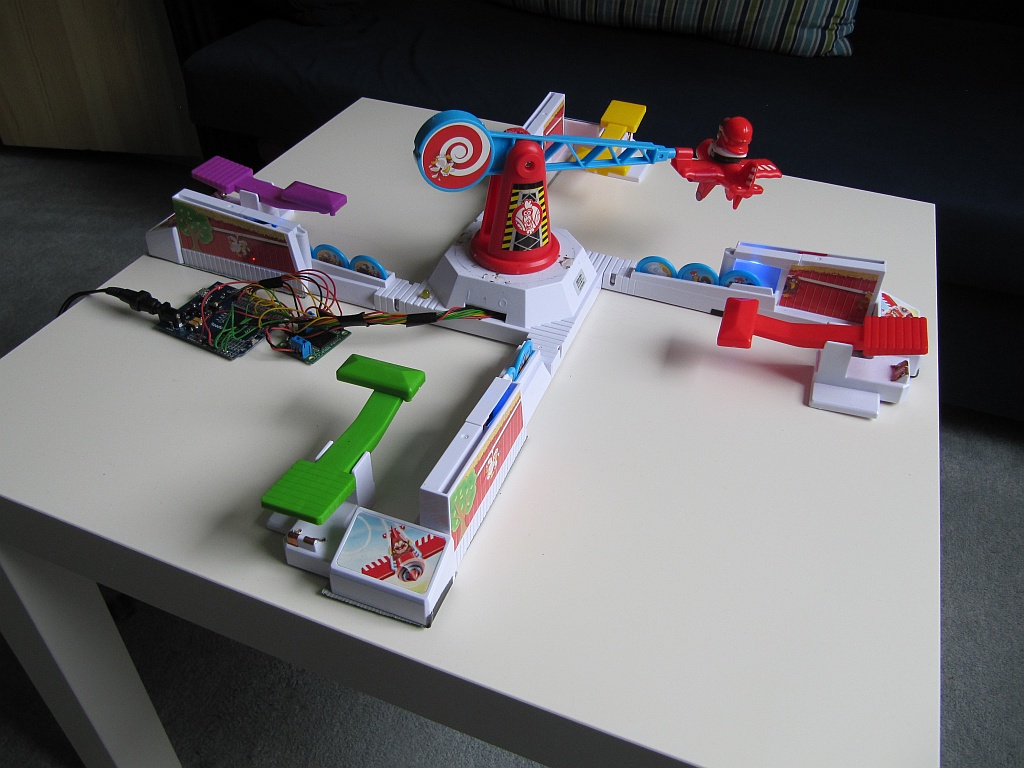

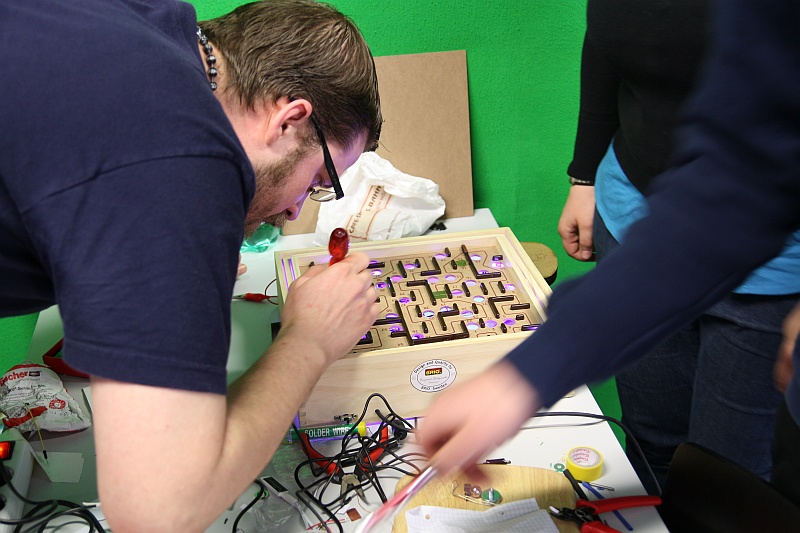

Examples from SwH

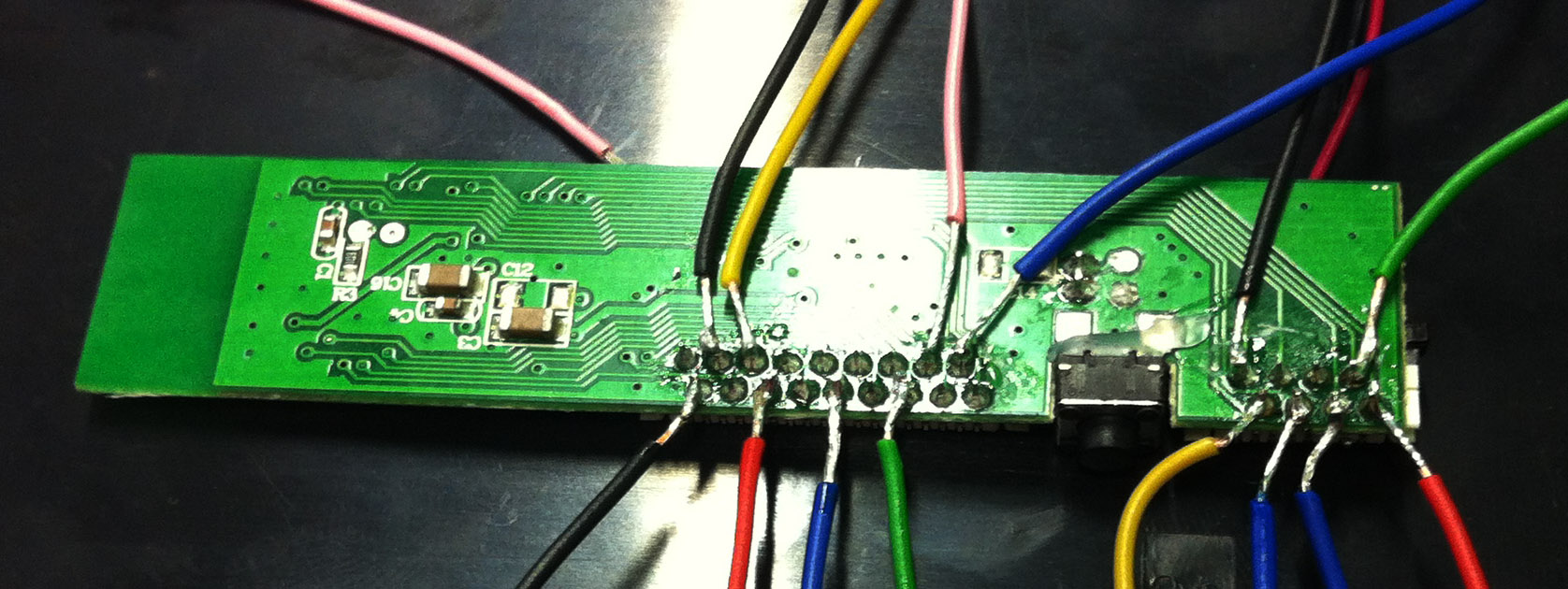

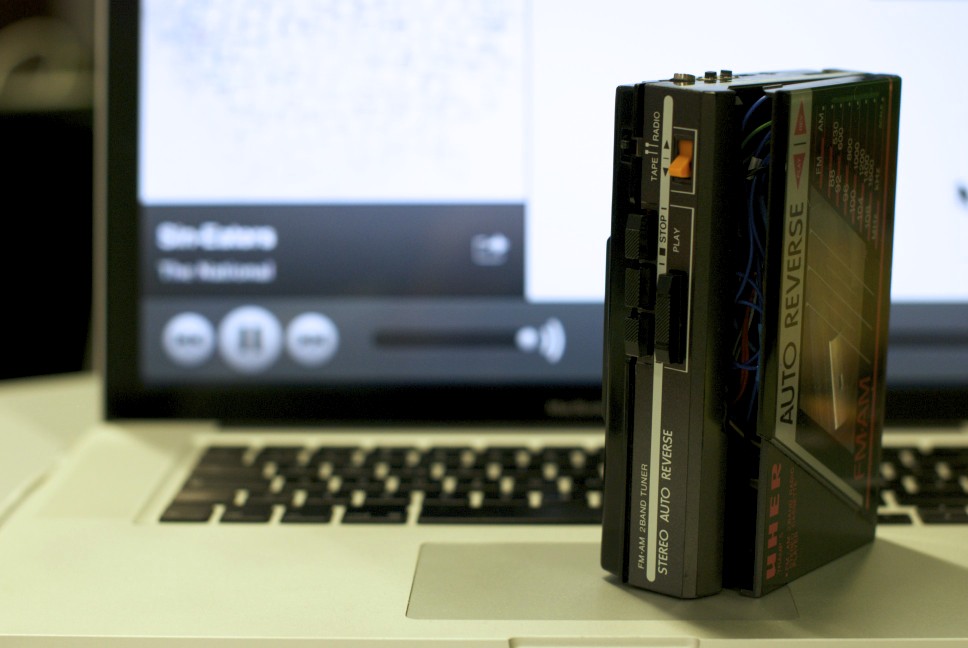

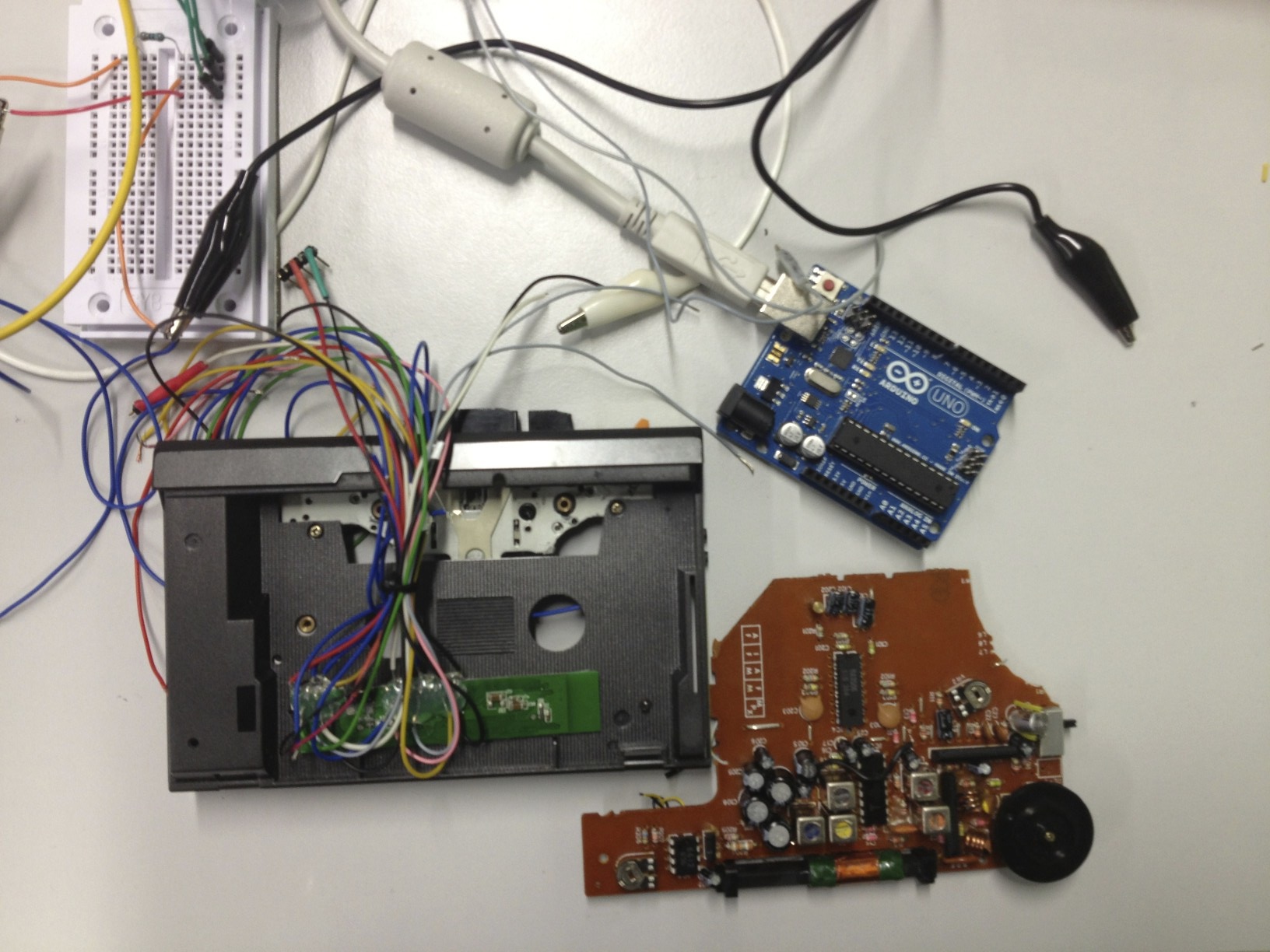

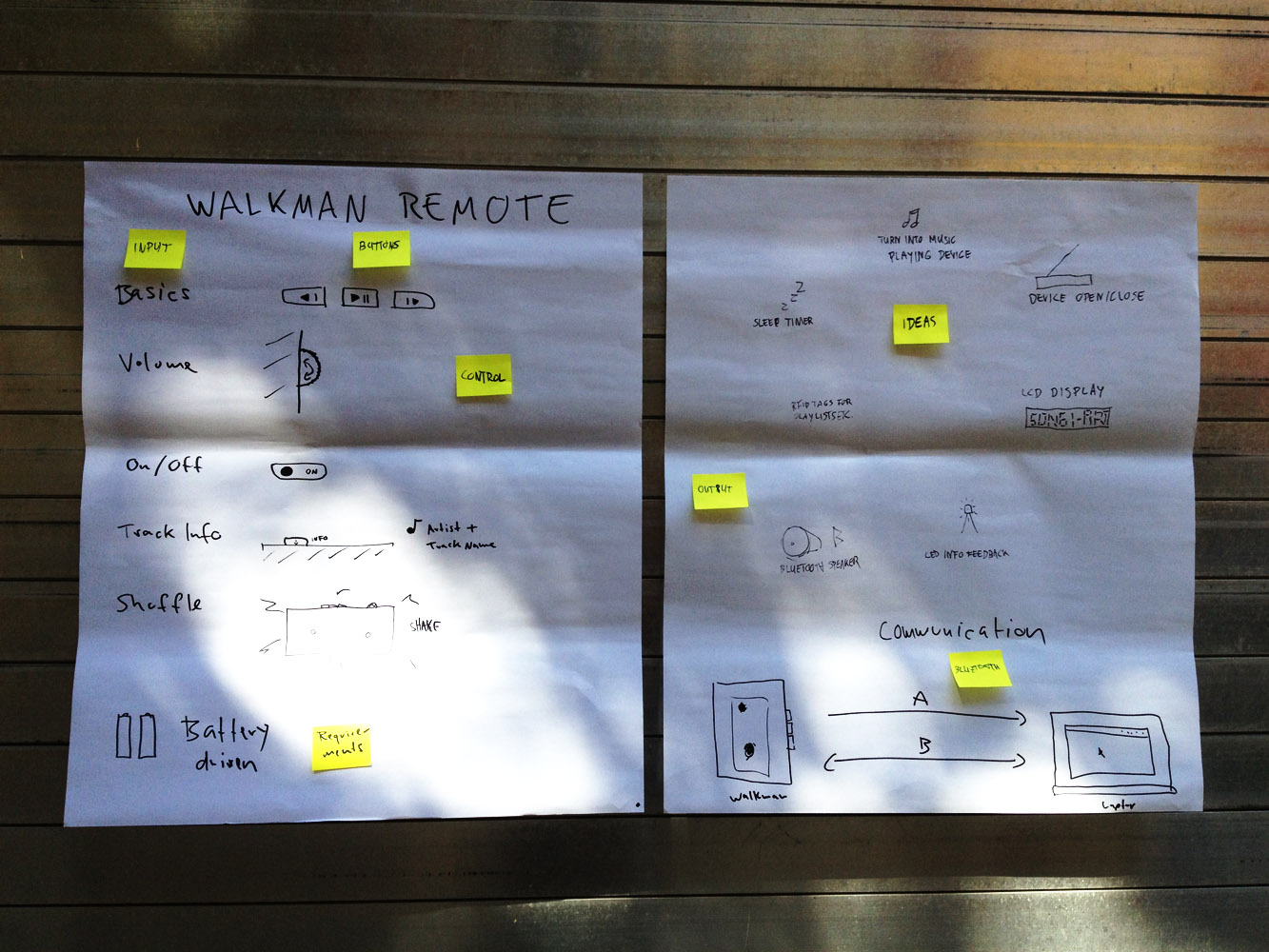

Walkman Remote
Examples from SwH
Walkman Remote
Examples from SwH
Walkman Remote
Examples from SwH
Walkman Remote
Examples from SwH
Walkman Remote
Examples from SwH
Grantiger Alois
Examples from SwH
MADLAB
Examples from SwH
RESCUTE
Team Up!
Team Up!
- 8 teams, 2 people each
- Tech + Art
- BA + MA (if possible)
- Name tags
How Does Electricity Work?

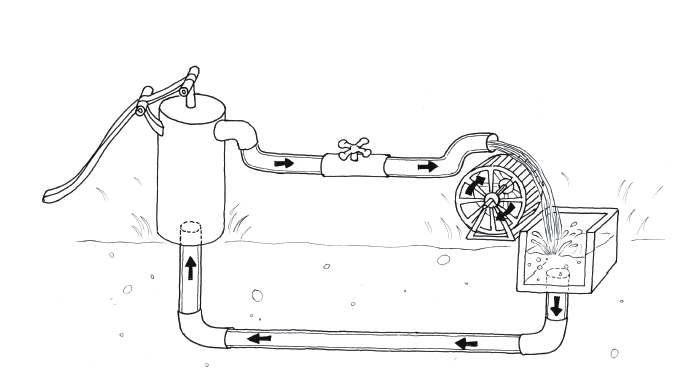

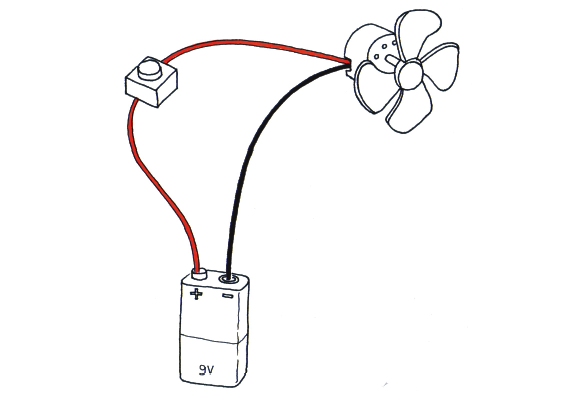

Electricity is Like Water!

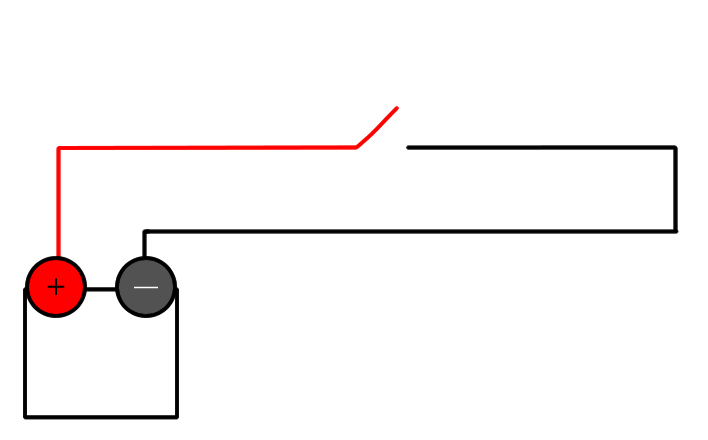

Circuit
(das ist übrigens ein Kurzschluss!)
Let it flow, make it glow!
Electricity
| + | → | – |
|---|---|---|
| "where it comes from" | "where it flows to" | |
| RED | BLACK | |
| ↑ | ⏚ | |
| +, VCC | -, GND, Ground, „Masse”, „Erde” |
Really, Electricity is Just Like Water!
| Voltage U [Volt] deutsch: Spannung | ≈ | Speed |
| Current I [Ampere] deutsch: Stromstärke | ≈ | Mass |
| Power P [Watt] | = | U * I |
| Resistance R [Ω] deutsch: Widerstand | = | U/I Ohm's Law |
A fast, thin shot of water hurts, but does not harm you.
A slow moving flow of water does not hurt, but is powerful.
A fast and big flow of water flushes you away!

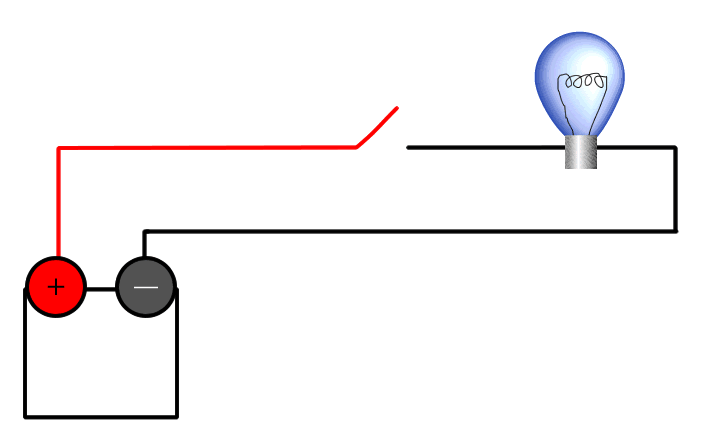

A Simple Circuit
Breadboard
("Steckboard", "Prototyping Board")
Breadboard Internals
Breadboard Internals

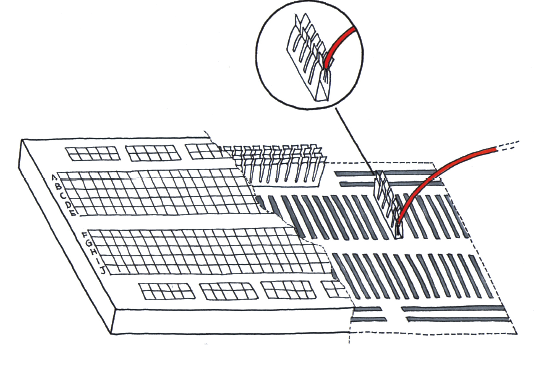

Breadboard Connections
Realistic Circuit on a Breadboard
Realistic Circuit
Metal Conducts Electricity.
Instead of wires, you can also use:
- Aluminum Foil
- Metal Cases (→ Bicycle)

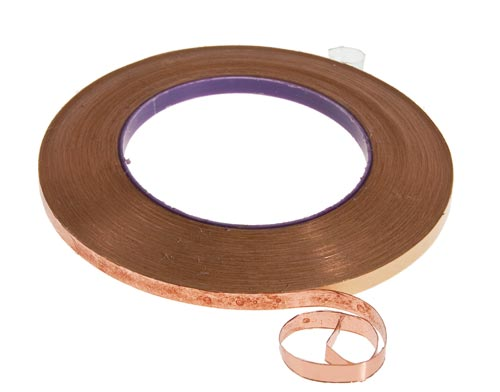

- Copper Plates / Copper Tape

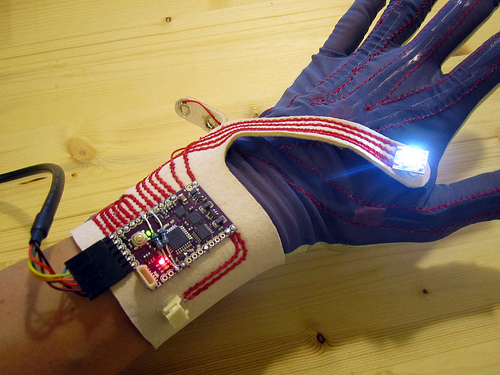

- Conductive Thread

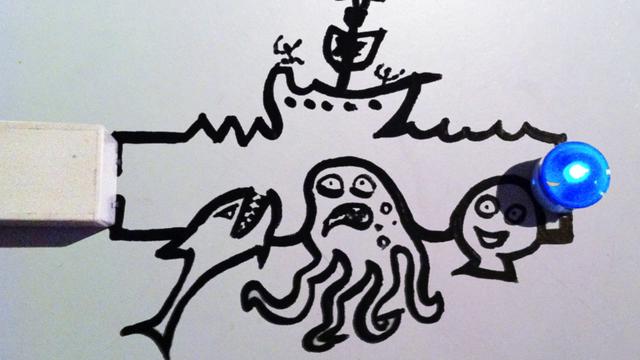

- Conductive Ink
- Skin (partially)
- Salty Liquids
- …
Be creative.
Image Source: funny-pictures
Tool Time!
Breadboard

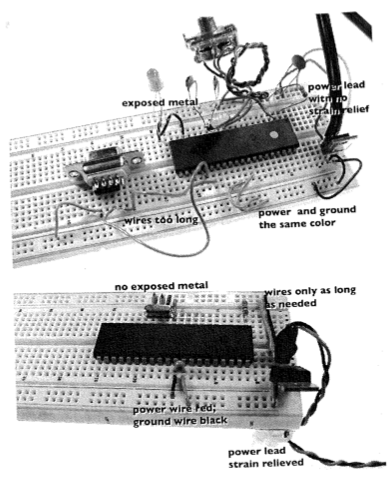

Messy VS Clean

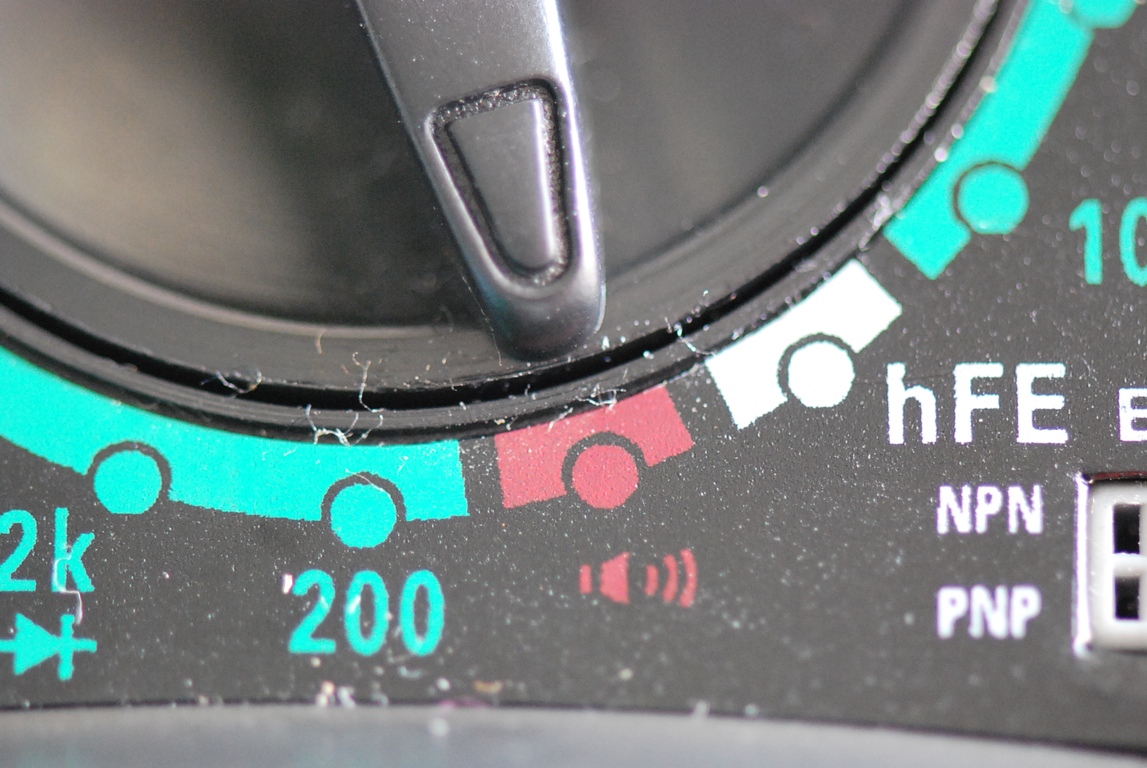

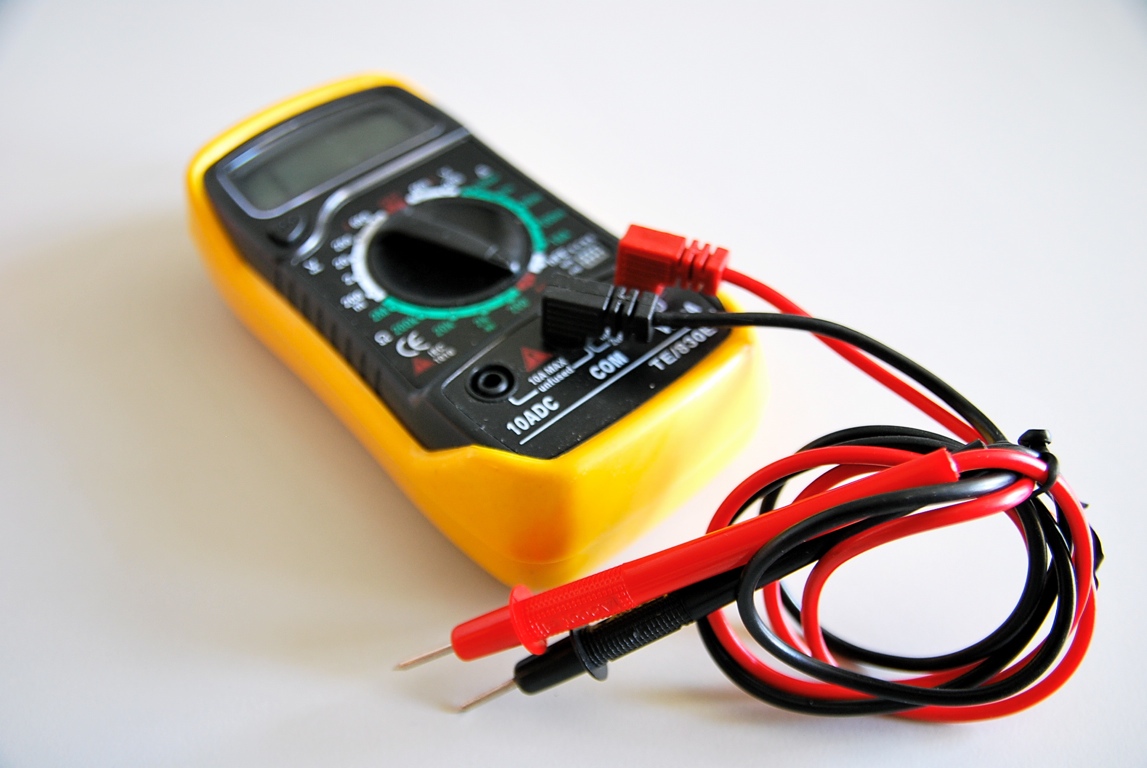

Multimeter

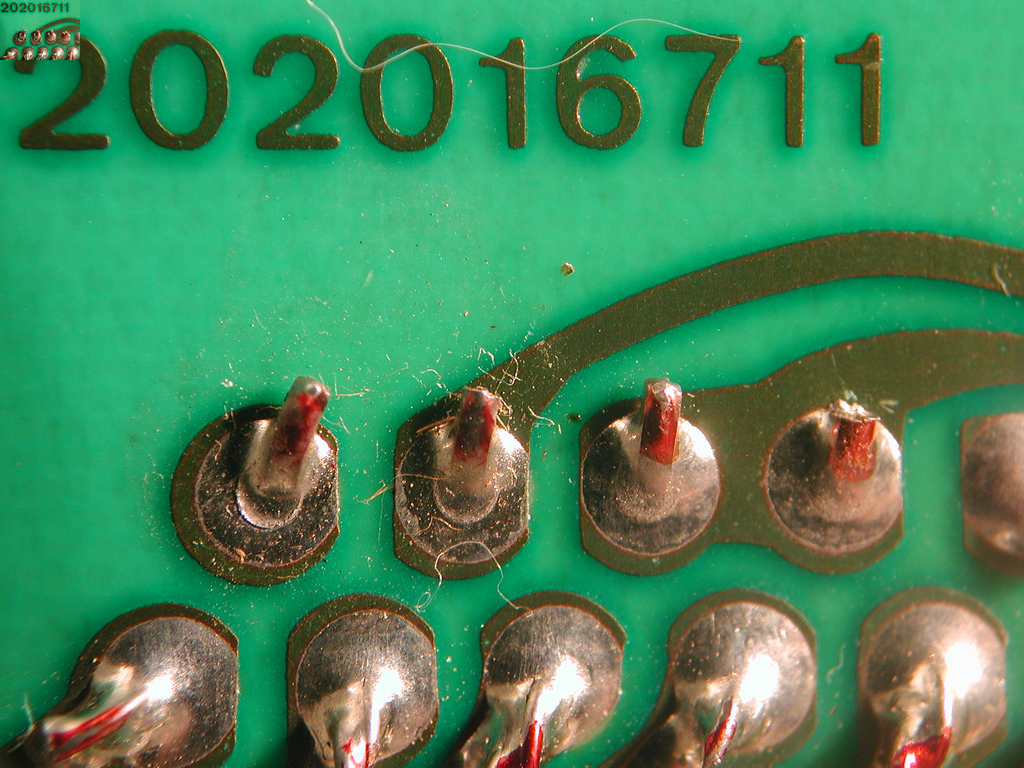

Soldering
Safety First
|
|
Experiment
- Measure the battery's Voltage
- Check continuity on different things! (Switches, metal, Arduino Ground-Pins)

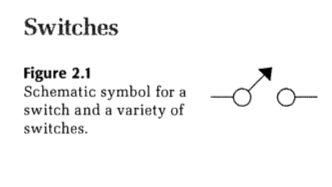

Switches & Buttons
On and Off…

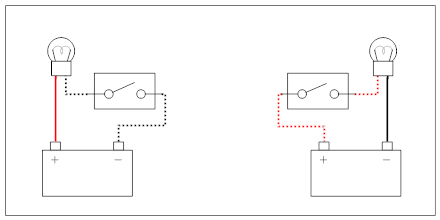

No matter where you break it!
DIP Switch

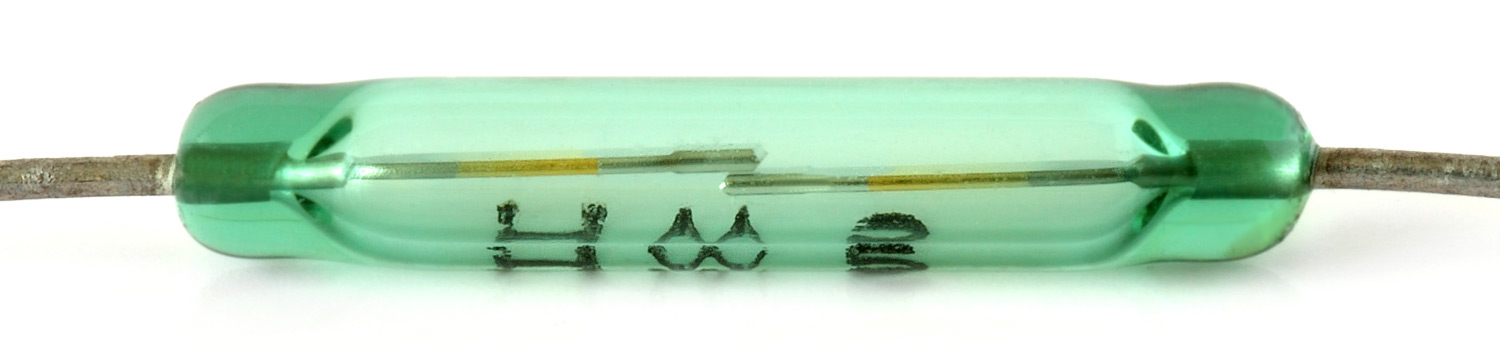

Magnetic Switch

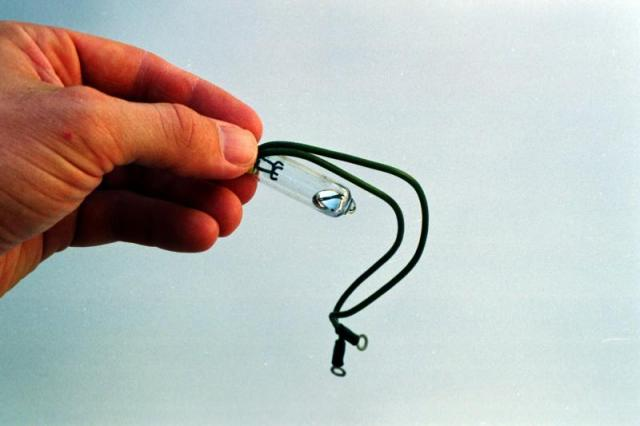

Tilt Switch / Ball Switch
Copper Tape = Switch
Conductive Thread
Conductive Ink
Experiment
- Check continuity on some switches
- Power Supply + Resistor + LED + Button
- Arduino + Resistor + LED + Button
Resistors

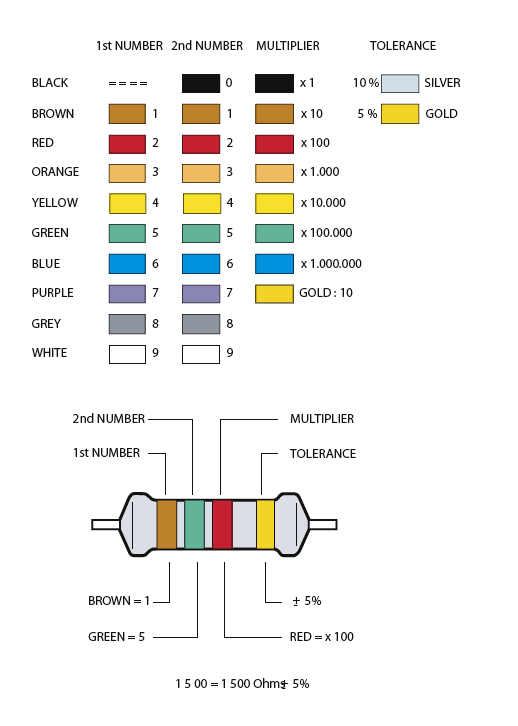

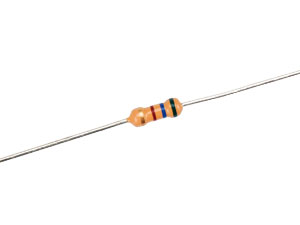

Resistors: Codes

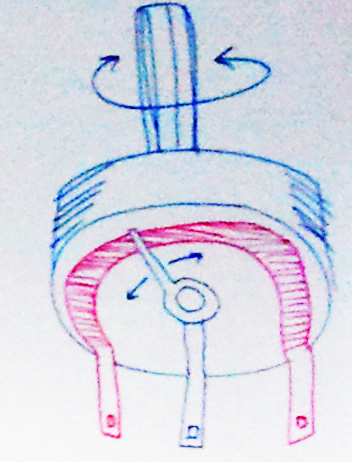

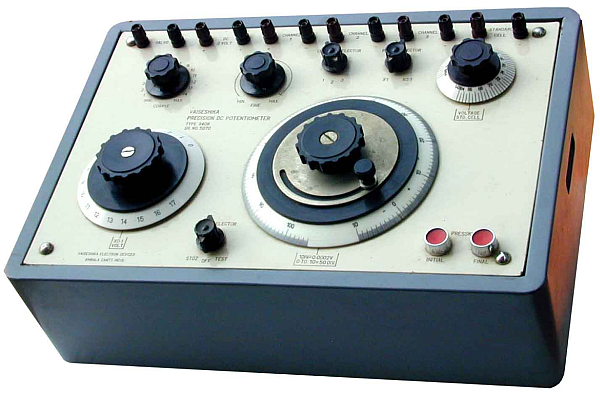

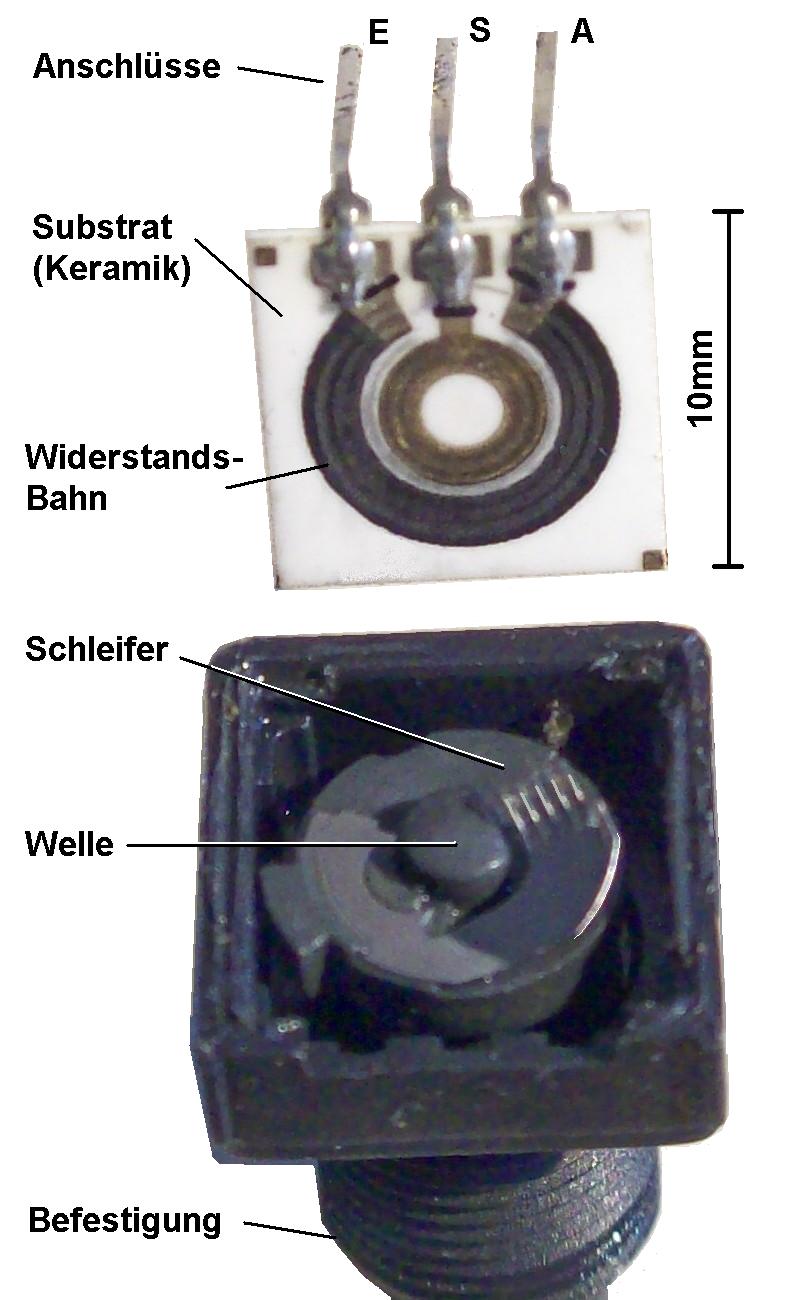

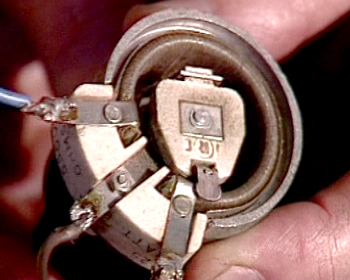

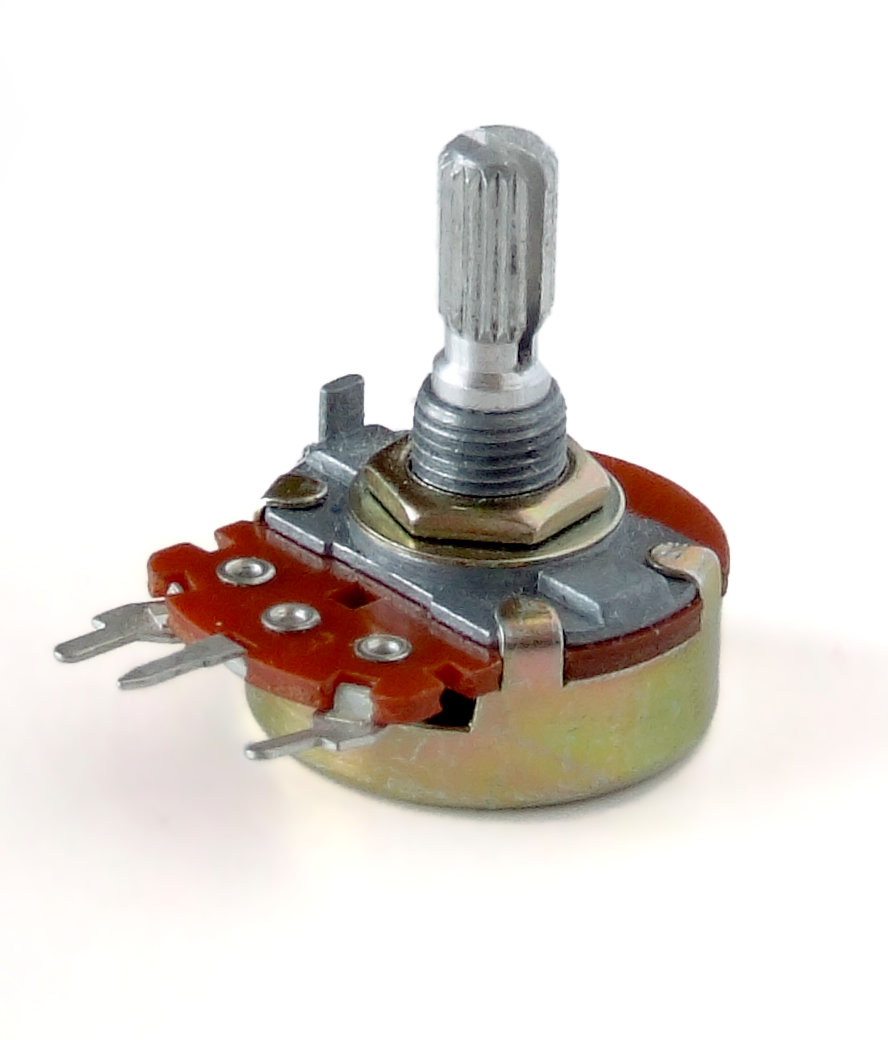

Resistors: Potentiometer
Resistors: Potentiometer
Resistors: Potentiometer
Experiment
- Check continuity on some switches
- Check resistance on some resistors
- Check resistance on a potentiometer
- Battery + Resistor + LED

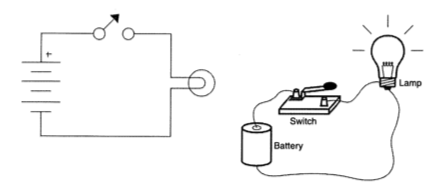

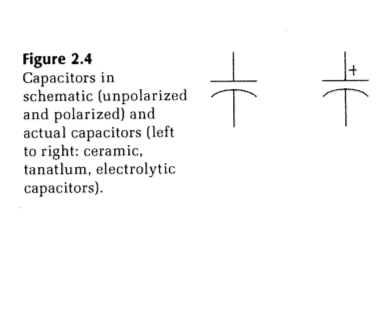

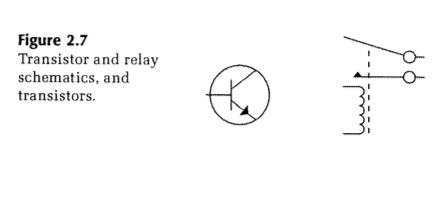

Sketching Circuits

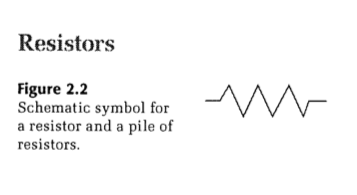

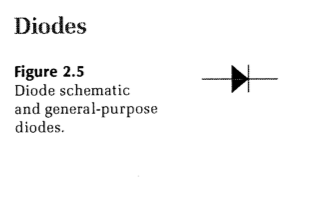

Symbols (US)

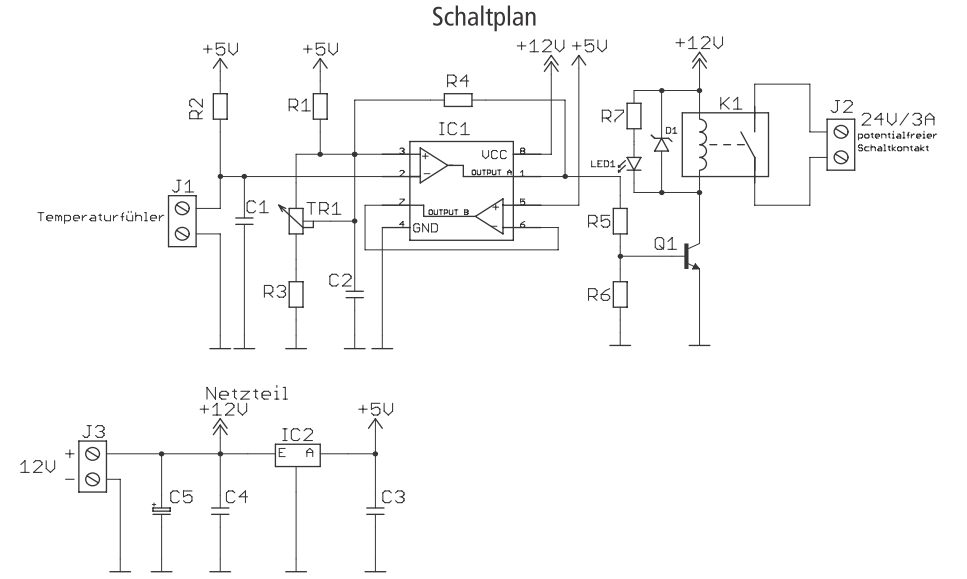

Schematic (EU)
Units
| 10n | × | Spoken | Written | Example |
|---|---|---|---|---|
| 1012 | 1'000'000'000'000 | Tera… | T… | TB |
| 109 | 1'000'000'000 | Giga… | G… | GHz |
| 106 | 1'000'000 | Mega… | M… | MΩ |
| 103 | 1'000 | Kilo… | K… | Km |
| 1 | 1 | — | — | |
| 10-3 | 0,001 | Milli… | m… | mW |
| 10-6 | 0,000 001 | Micro… | μ… | μF |
| 10-9 | 0,000 000 001 | Nano… | n… | ns |
| 10-12 | 0,000 000 000 001 | Pico… | p… | pH |

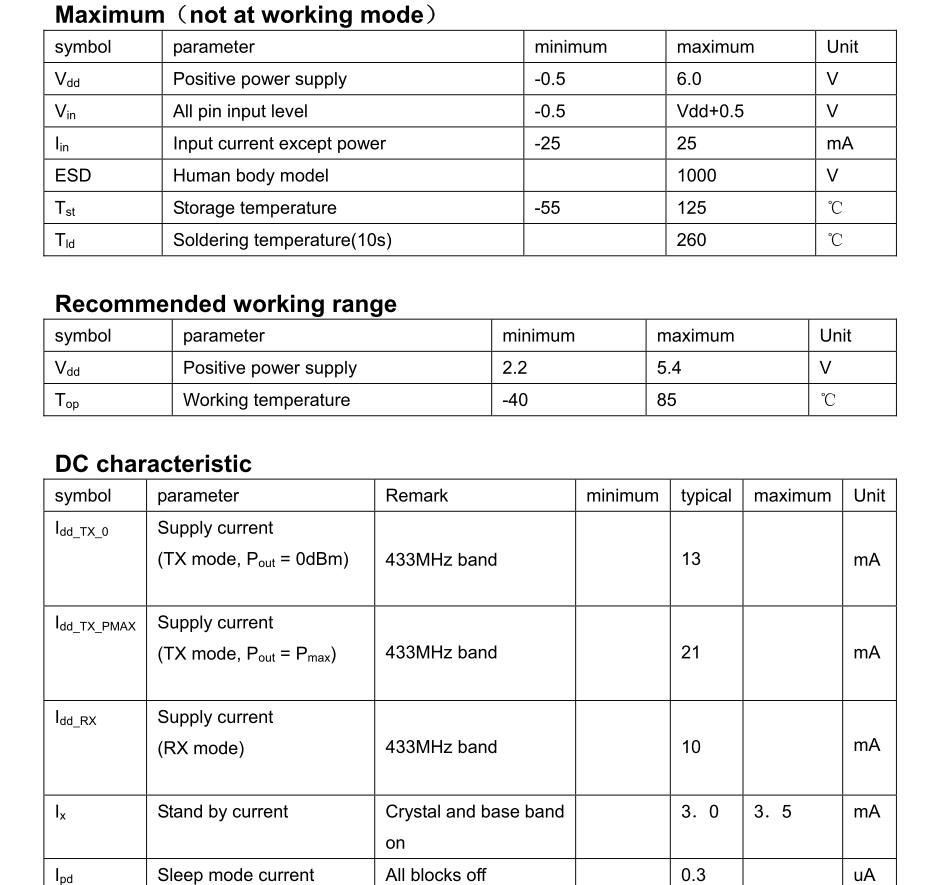

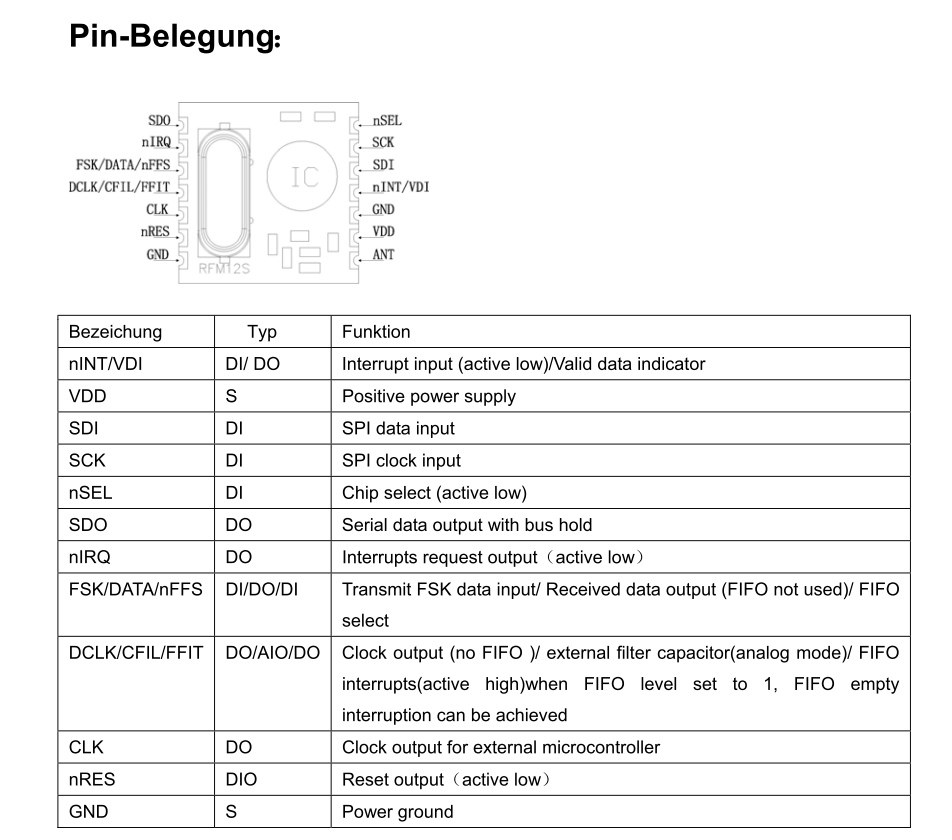

You ♥ Data Sheets
"Hello, Computer!"
Quelle: UTEXAS

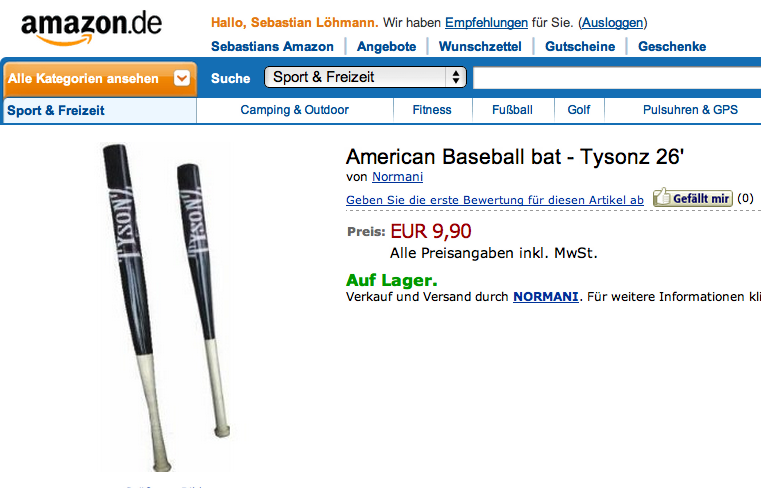

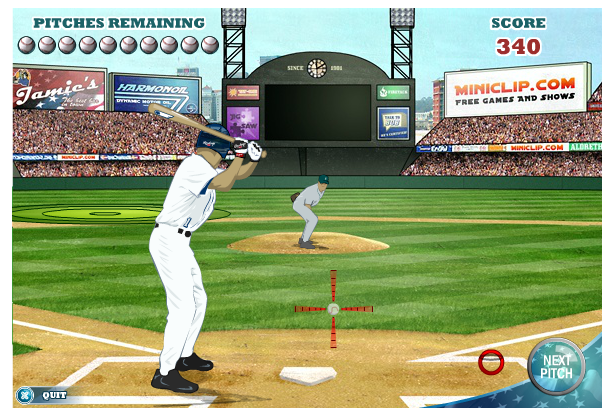

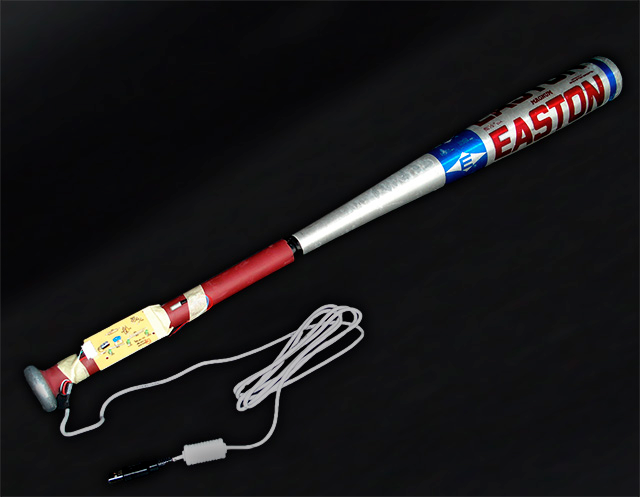

Example: Baseball HID
Example: Baseball HID
Example: Baseball HID
Example: Baseball HID
Example: Baseball HID

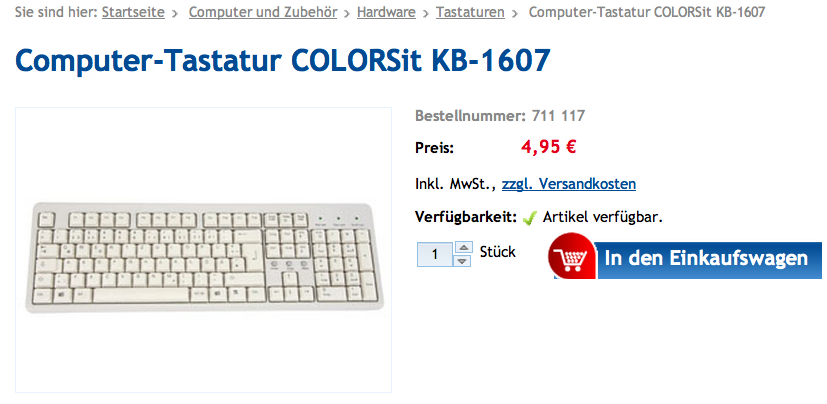

Hack a Keyboard
Now!

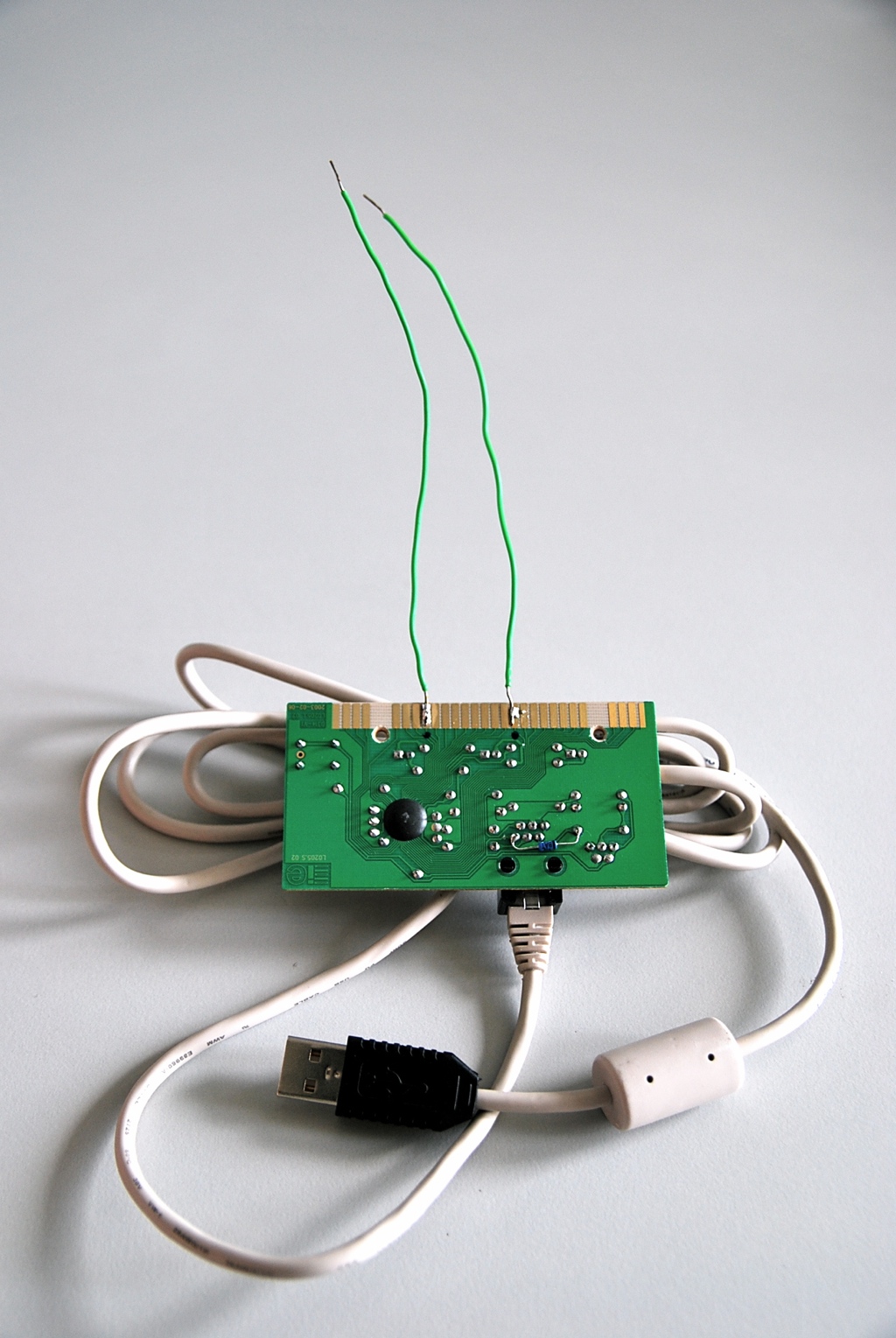

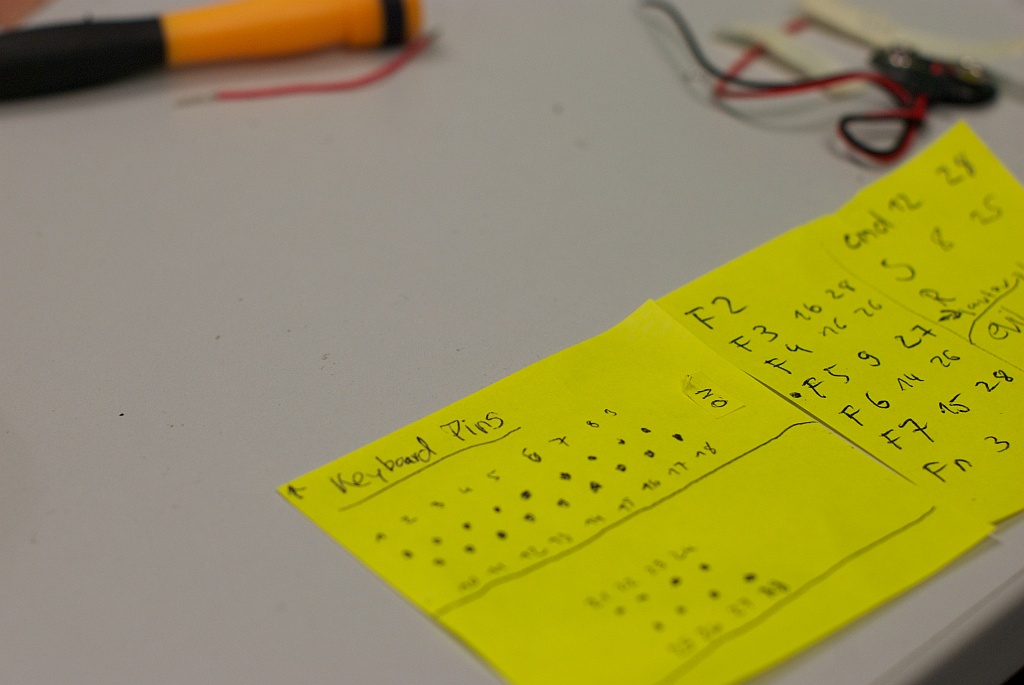

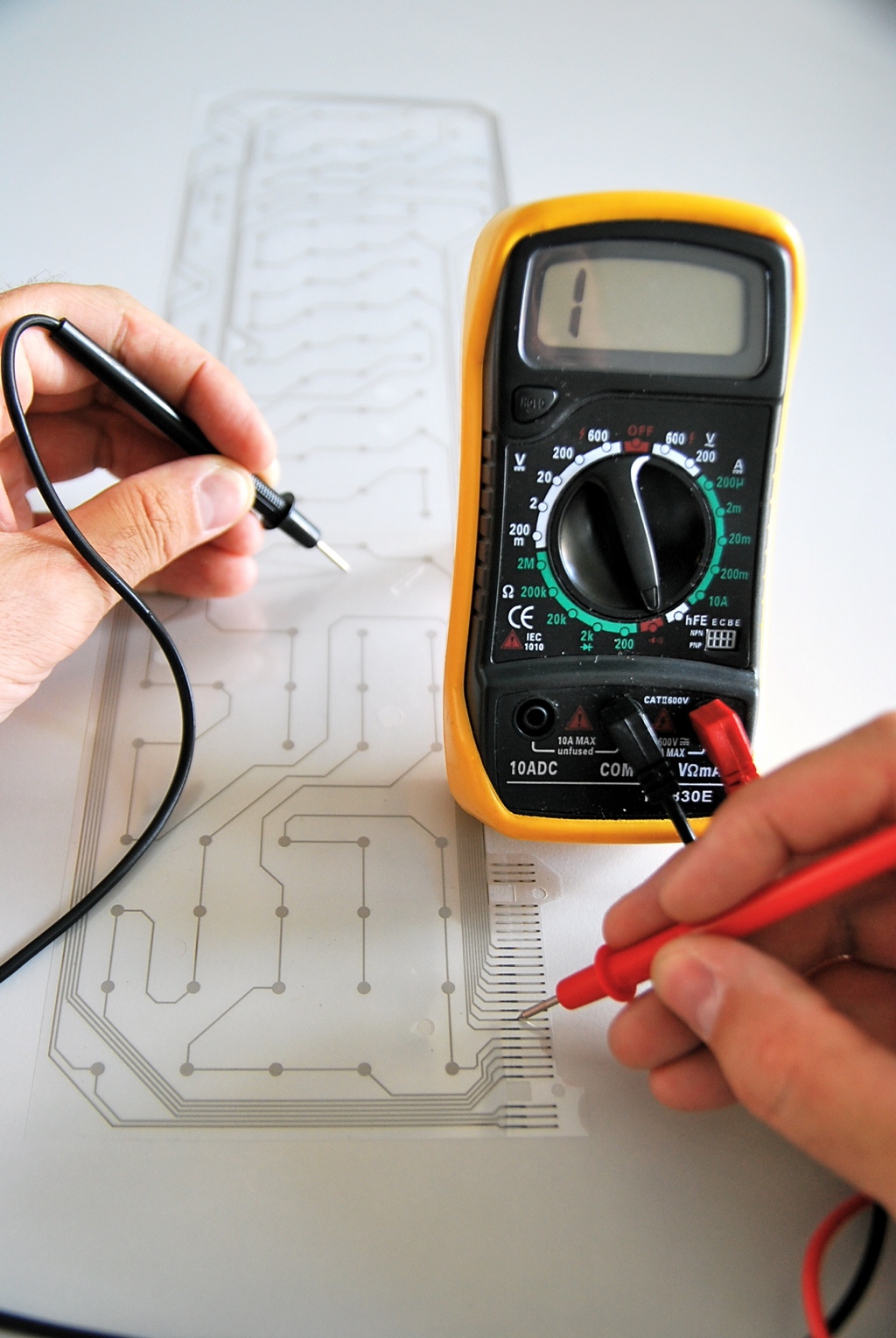

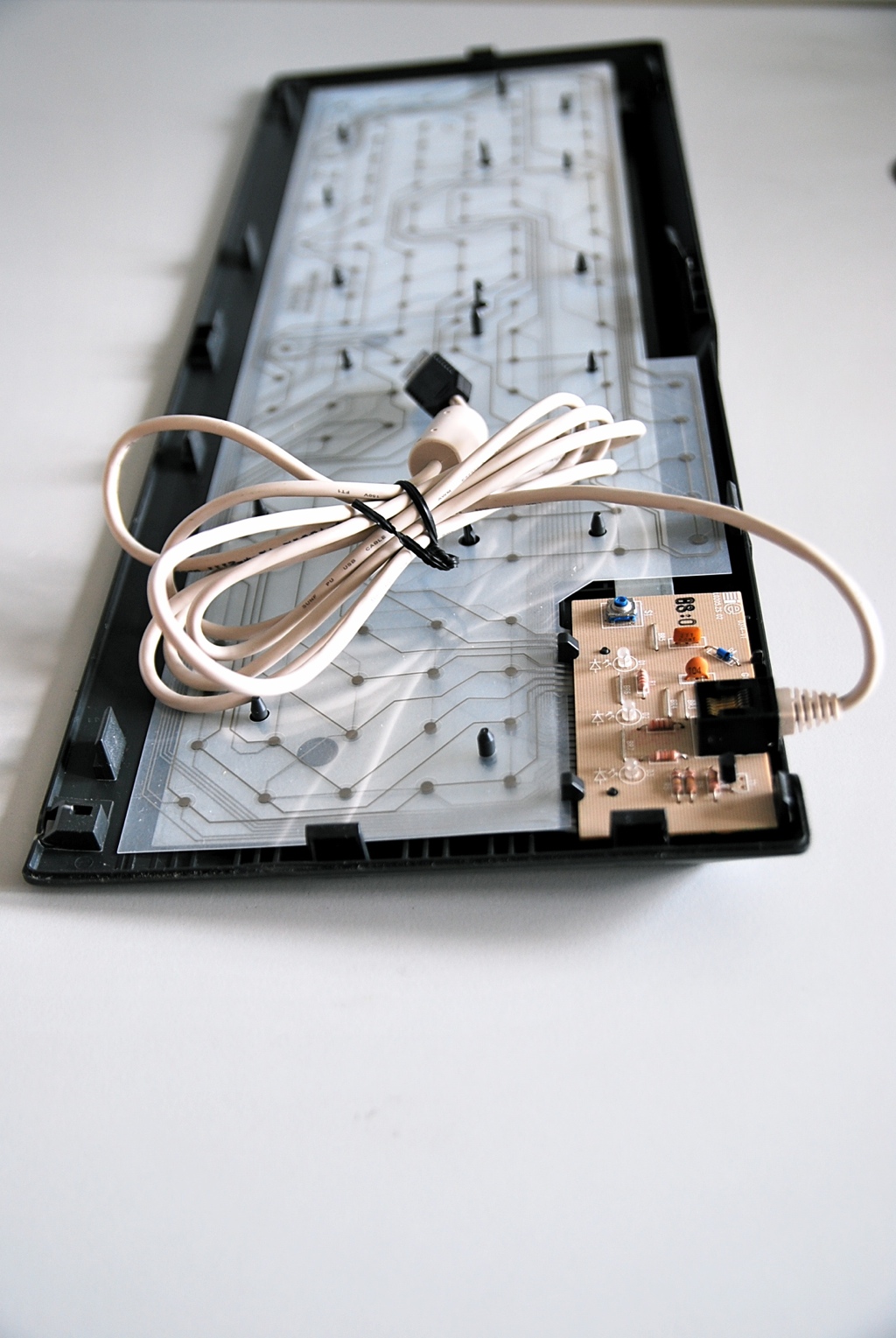

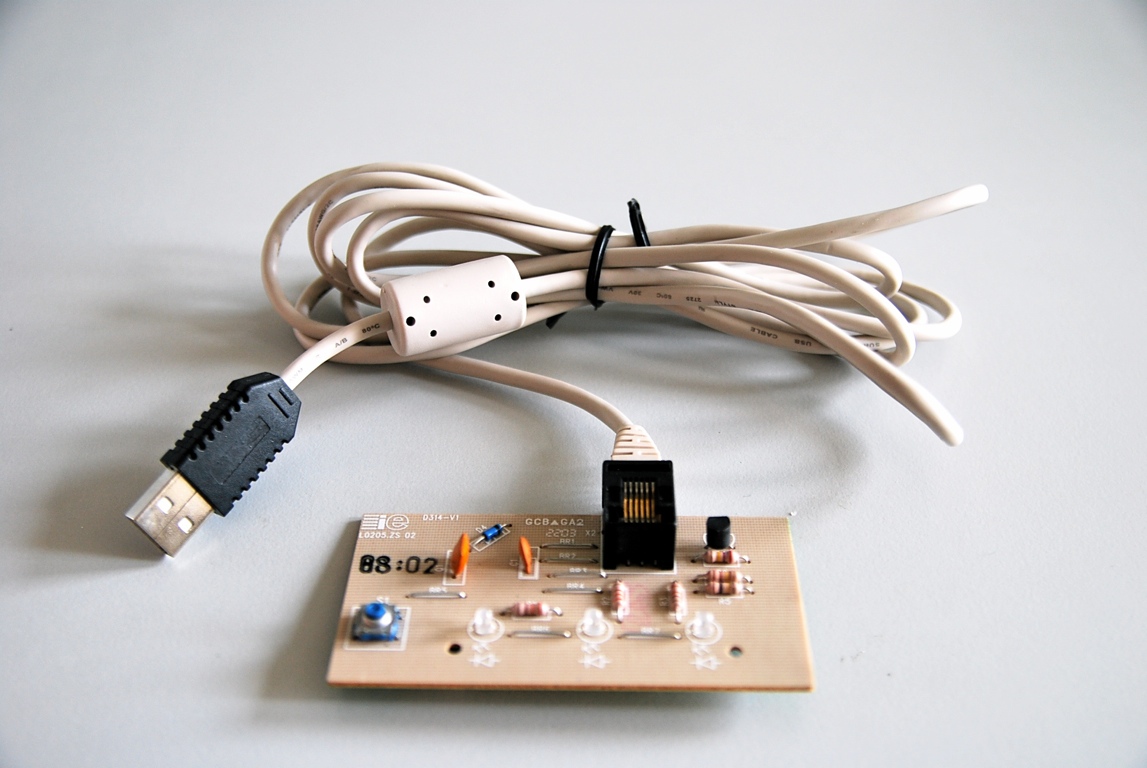

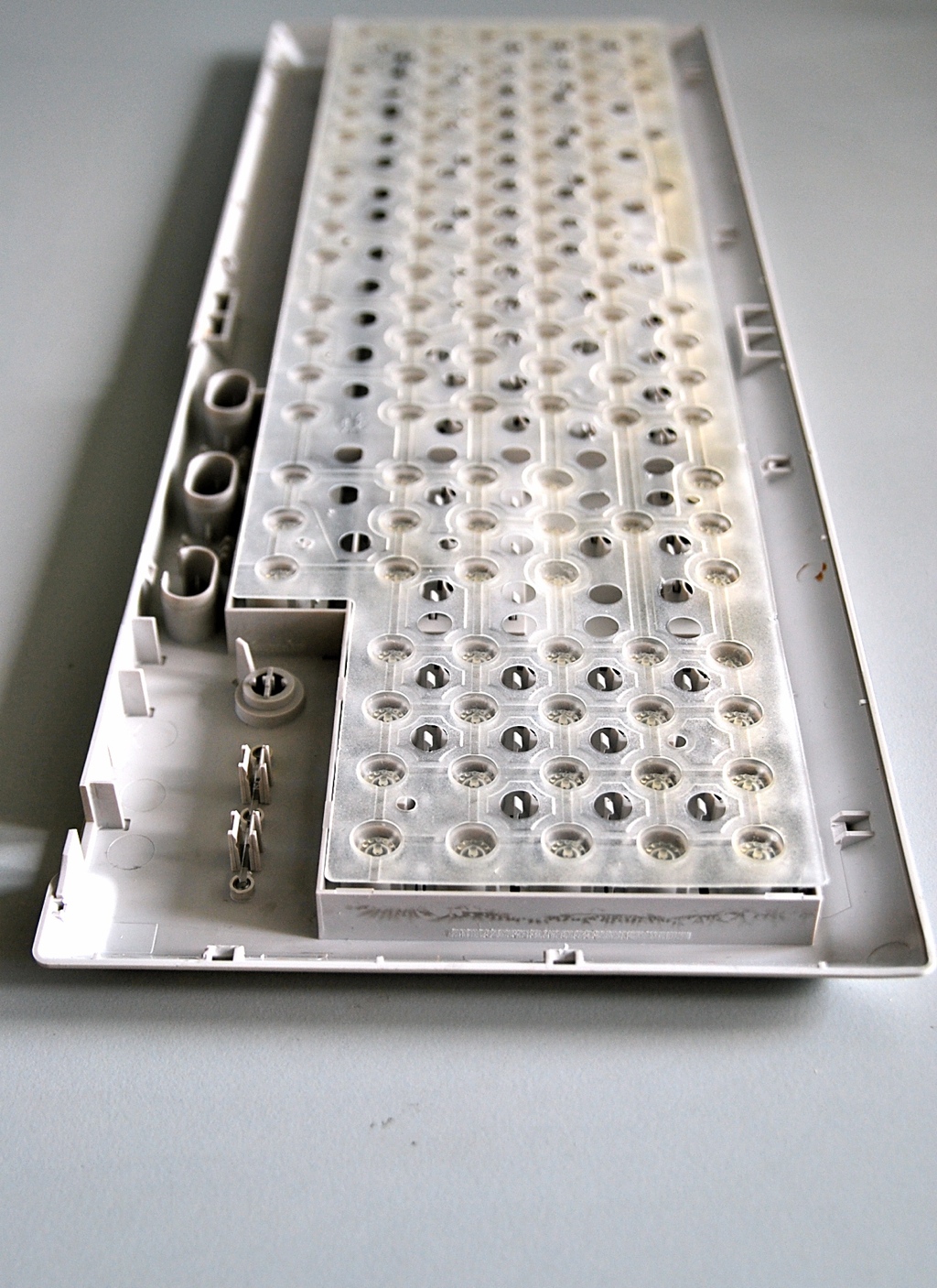

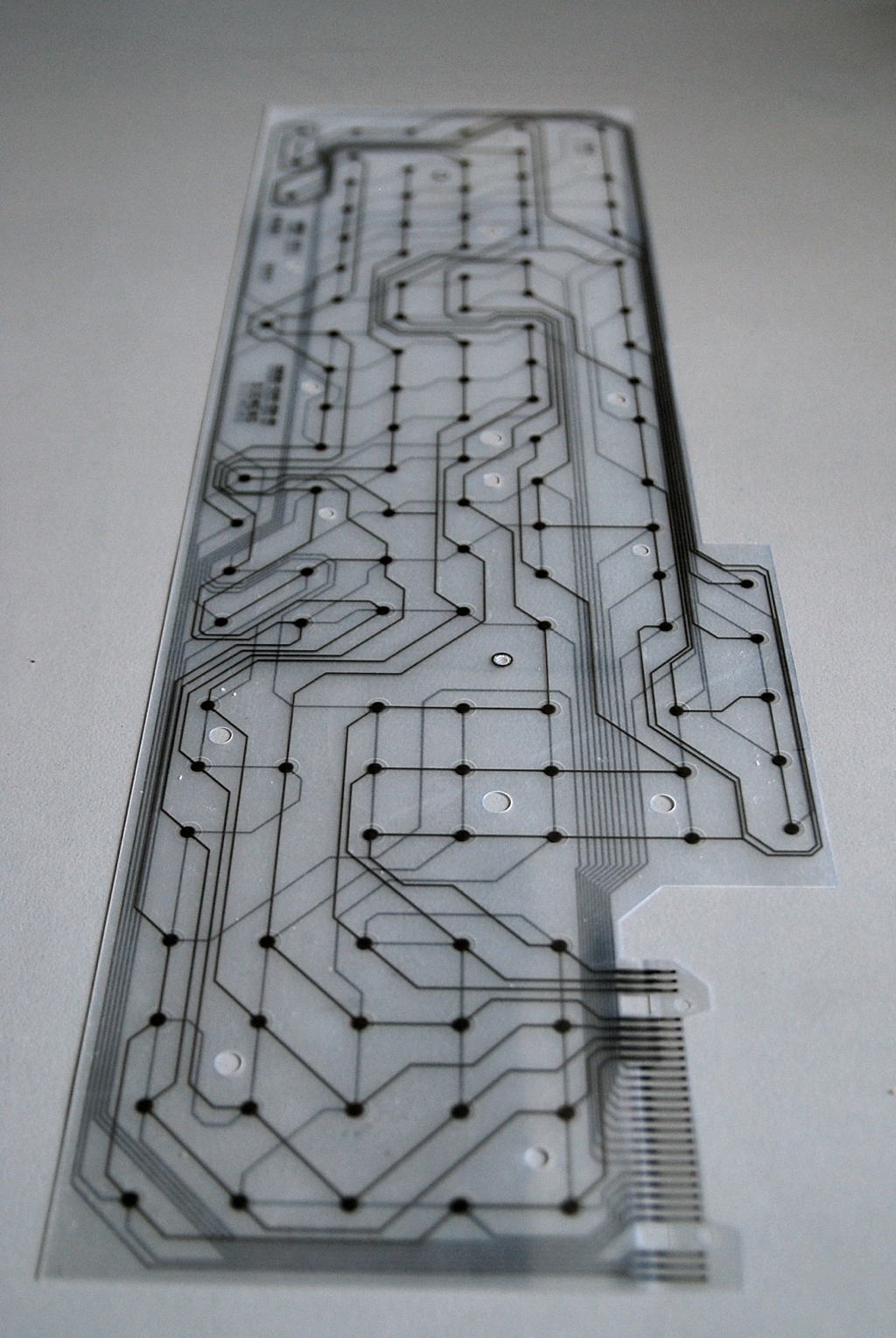

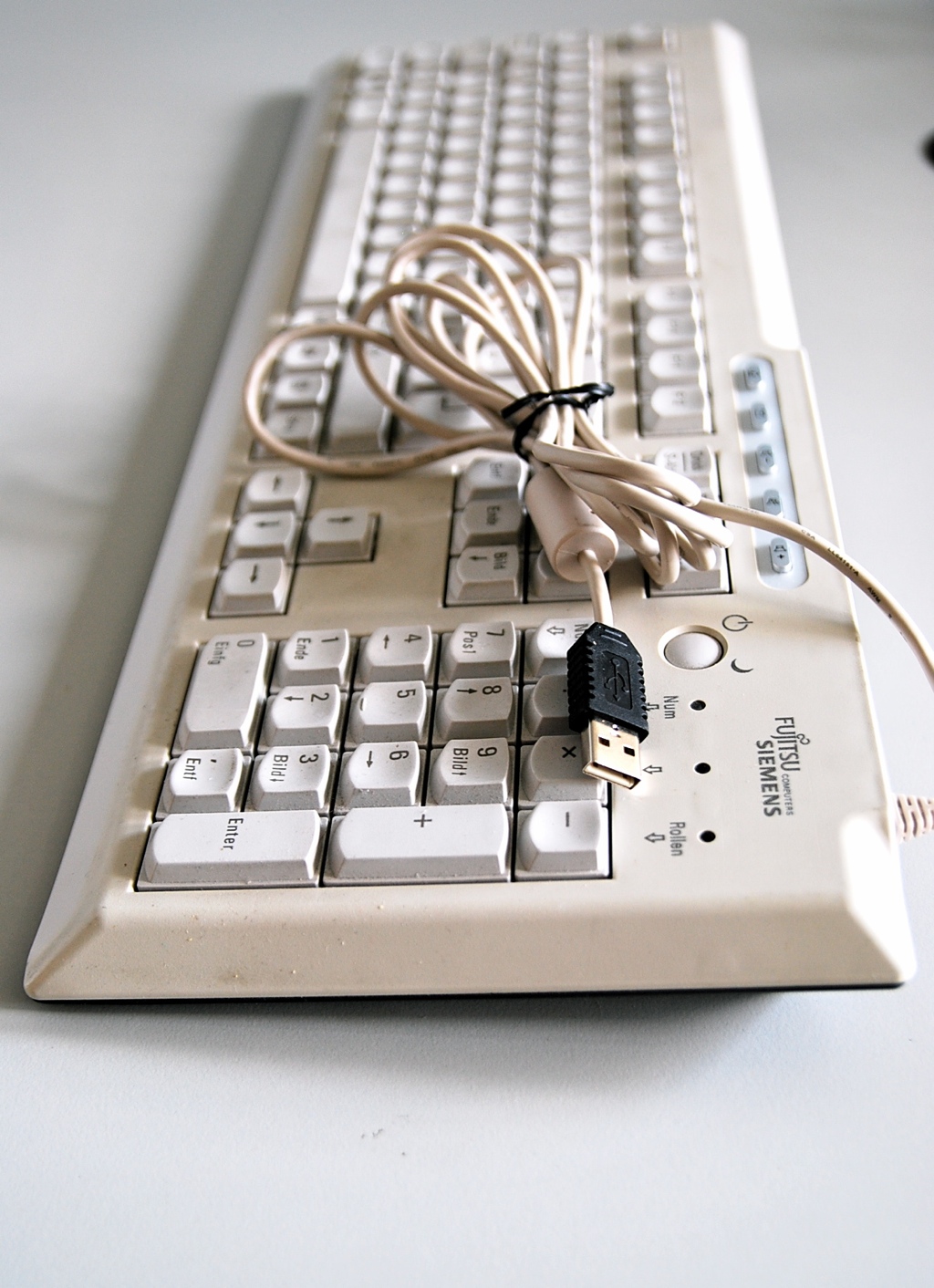

Keyboard Hacking

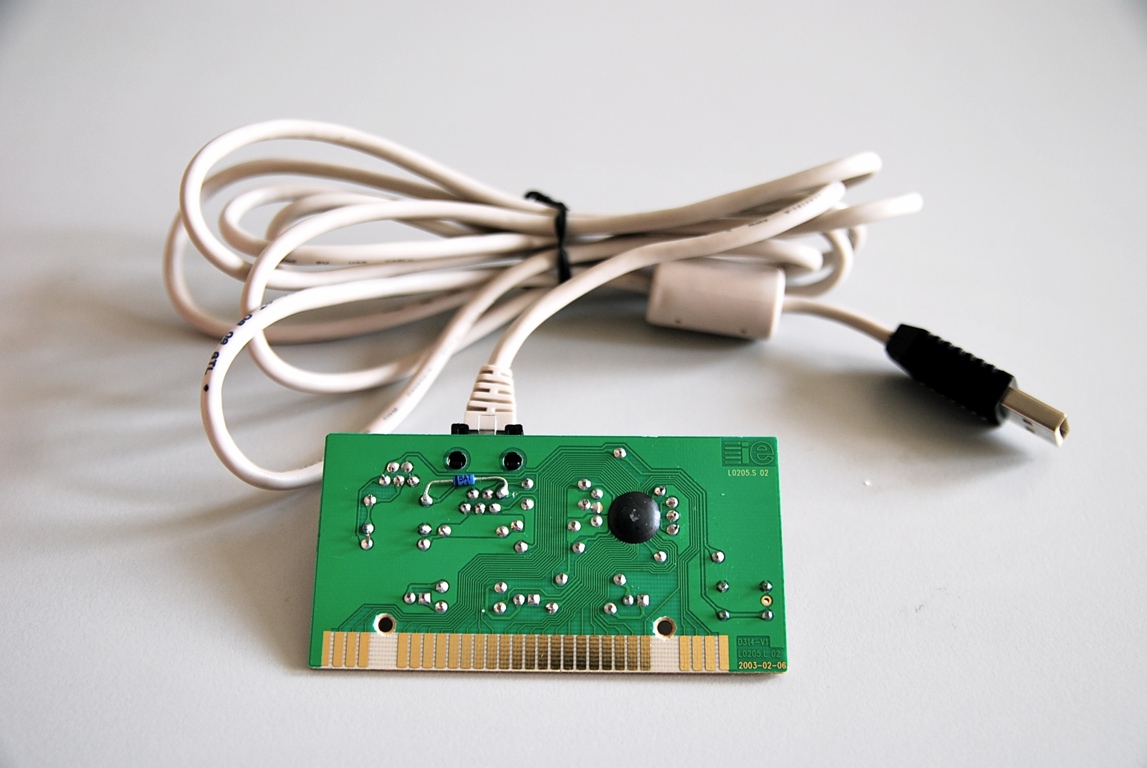

Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Keyboard Hacking
Task!
- Design a game controller for an online game that works with the keyboard
- Create a switch through: foil, tilt switch, coins etc.
- Finished with presentation by 16:30
Presentation
Keyboard Hacks
Homework
Homework: Software
- Check out Arduino: arduino.cc
- Download Arduino 1.0.5 IDE
MA Students: Don't forget to document!
